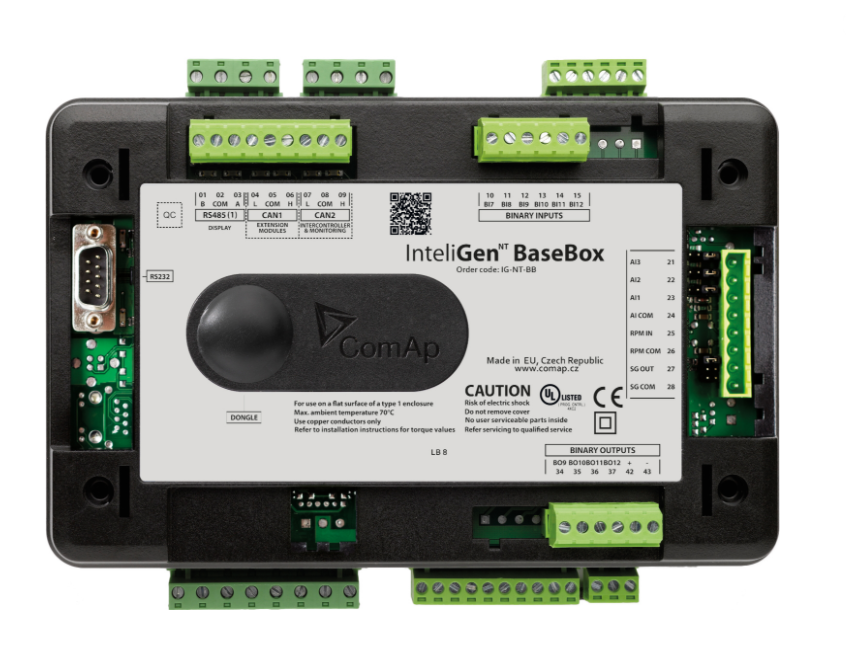

Gen-set Controller InteliGen NT BaseBox GeCon

Gen-set Controller InteliGen NT BaseBox GeCon

Complex Parallel Generator Controller with Detachable Colour Display

Comprehensive generator controller for both - single and multiple gensets operating in standby or paralleling modes

To be used in conjunction with detachable colour displays InteliVision 5 or InteliVision 8

Complete integrated generator solution and signal sharing via CAN bus – minimum external components needed

Many communication options – easy remote supervising and servicing

Generator performance log for easy problem tracing

Automatic synchronizing and control breaker

AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)

Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr

Mains measurement: U, I, Hz, kW, kVAr, PF

True RMS (TRMS) is used with Voltage, Current and Power measurement

Inputs and outputs configurable for various customer needs

Bipolar binary outputs - possibility to use BO as High or Low side switch

RS232 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface

Controller redundancy

Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values

Integrated PLC programmable functions

Integrated fixed and configurable protections

DIN-Rail mount

Customized firmware solution

------------------------------------------------------------
Order instruction: To run the GeCon software you need to order InteliGen NT BaseBox, and then install the correct GeCon software:

• GeCon LandBased (included in standard firmware)

• GeCon Marine (special dedicated firmware)

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement.

If you didn't find the P/N you need,just feel free to contact us !
