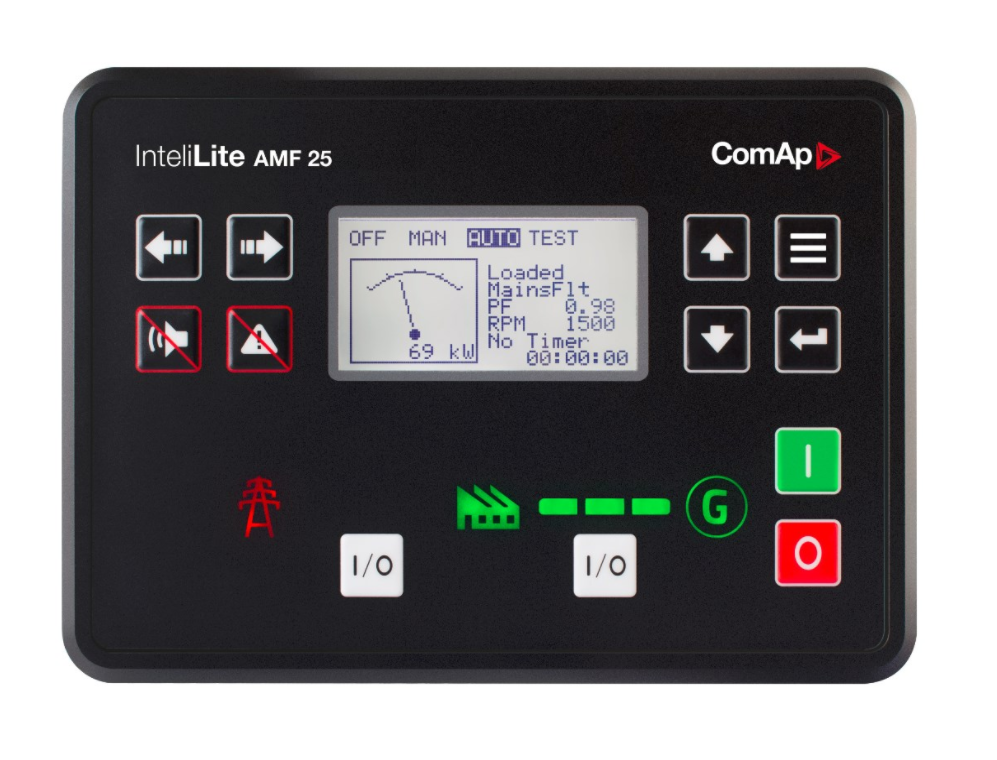

Gen-set Controller InteliLite AMF 25

Gen-set Controller InteliLite AMF 25

New generation of the most advanced Auto Mains Failure (AMF) gen-set controller

New generation of one of the world's most successful controllers in its class.

Advanced single gen-set controller for stand-by and prime power applications.

Single gen-set controller for stand-by and prime power applications

Easy to install, configure and use

5 languages in the controller

3 level of password

3 sets of alternative configuration

Direct communication with EFI engines

Tier 4 final ready

Total remote monitoring and control

Cloud-based monitoring and control via WebSupervisor

Wide range of communication capabilities including:

connection via RS232, RS485, CAN and on board USB

internet access using Ethernet, GPRS, 3G or 4G

support for Modbus (TCP/RTU) and SNMP (v1/v2c – including traps)

Active SMS and emails in different languages

Geofencing and tracking via WebSupervisor

In-built PLC, complemented with a PLC monitoring tool in InteliConfig (or LiteEdit 2015)

12 inputs and 8 outputs on-board

2x 10 A binary outputs for cranking and fuel solenoid

More I/Os available over plug-in or CAN modules (CM-BIO8-EFCP, Inteli AIN8, Inteli IO8/8, IGS-PTM)

Remote Annunciator over CAN

Activation of outputs based on inputs

Load shedding, dummy load capability

Real time clock (with battery)

Multipurpose flexible timers

Flexible event based history with up to 350 events

True RMS measurement

Comprehensive protections

Possibility to disable protections

Available also in low temperature version

UL Listed
