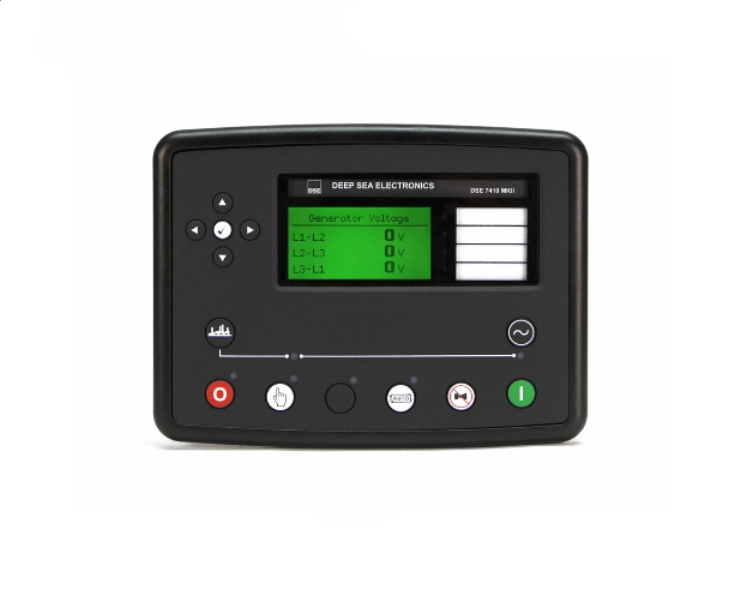

Deepsea Controller DSE7410 MKII
DSE7410 MKII Auto Start Control Module
The DSE7410 MKII is an intelligent, powerful auto start control module with high-level features and functionality. The control module is the first module in the DSE range to include in-built SNMP. The module is suitable for a wide range of single-set gas and diesel applications.
The control module features an enhanced dual core main processor and extended memory capacity. This allows the module to deliver a faster more powerful performance to return quicker operating responses on complex applications and provides enhanced memory storage for high level data logging functionality.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
7410-03 - 7410 MKII Auto Start Control Module
7410-04 - 7410 MKII Auto Start Control Module (Htr)
