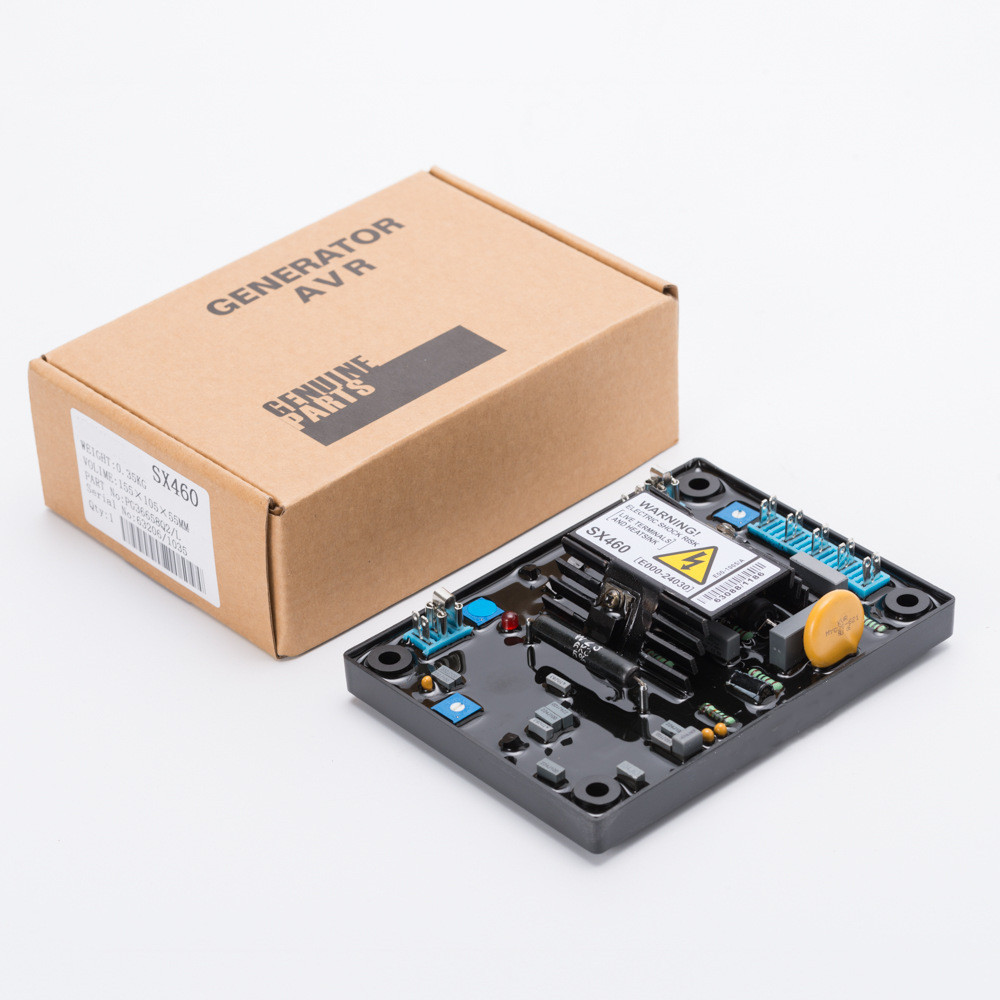

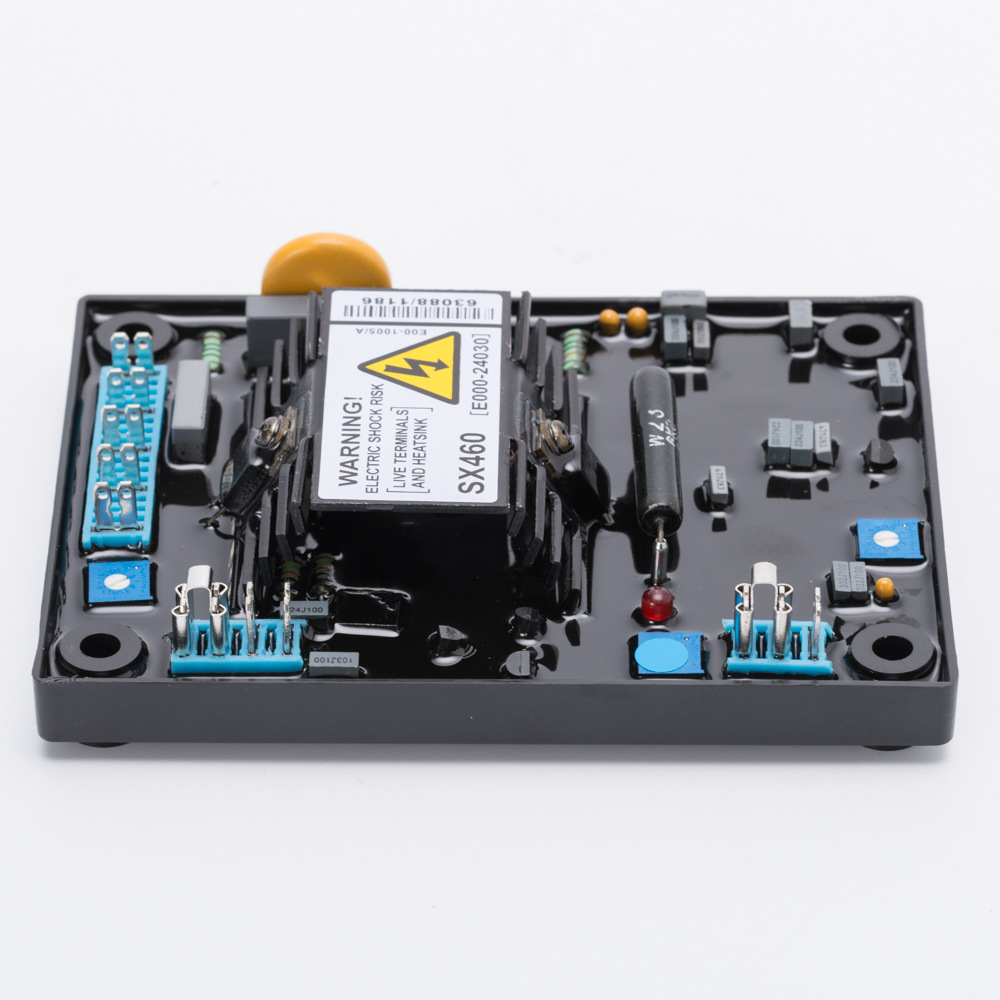

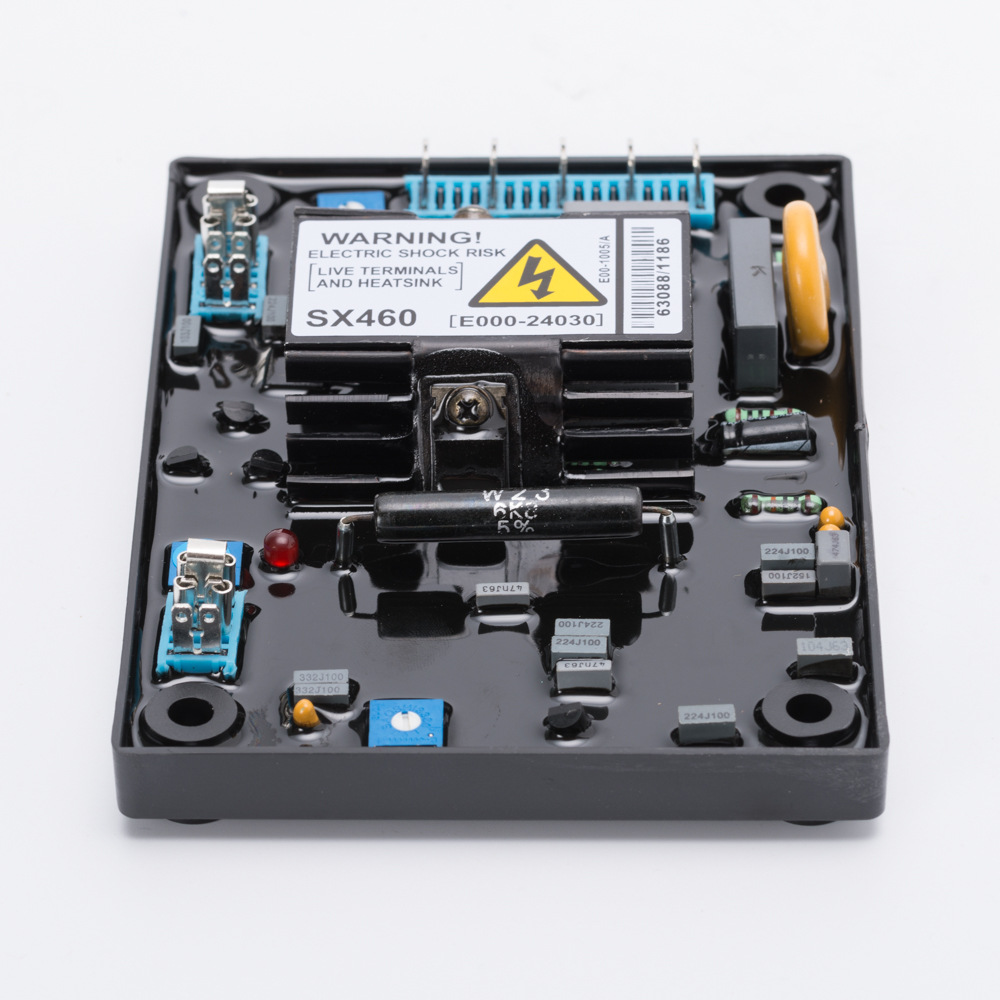

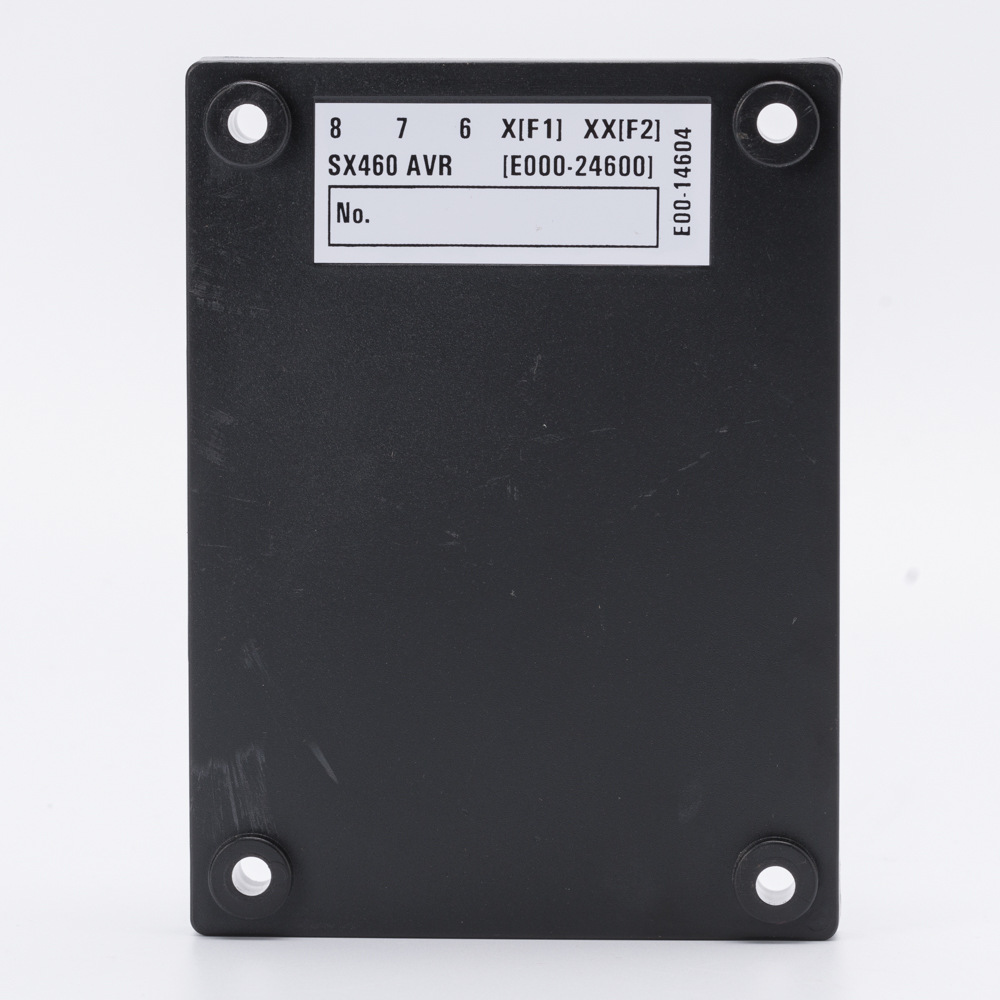

Generator AVR SX460 automatic voltage regulator

Generator AVR SX460 automatic voltage regulator

SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator. The AVR is linked  with the main stator windings and the exciter field windings to provide closed loop control of  the output voltage with load regulation of +/- 1.5%.In addition to being powered from the main stator, the AVR also derives a sample voltage from  the  output  windings for voltage control purposes. In response to this sample voltage, the AVR controls the power fed to the exciter field, and hence the  main field, to maintain the machine output voltage within the specified limits, compensating for load, speed, temperature and power factor of the generator.

A frequency measuring circuit continually monitors the generator output and provides output under-speed protection of the excitation system, by reducing the output voltage proportionally with speed below a pre-settable threshold. A manual adjustment is provided for factory setting of the under frequency roll off point,  (UFRO). This can easily be changed to 50 or 60 Hz in the field by push-on link selection.

Provision  is made for the connection of a remote voltage trimmer, allowing the user fine control of the  generator's output.
