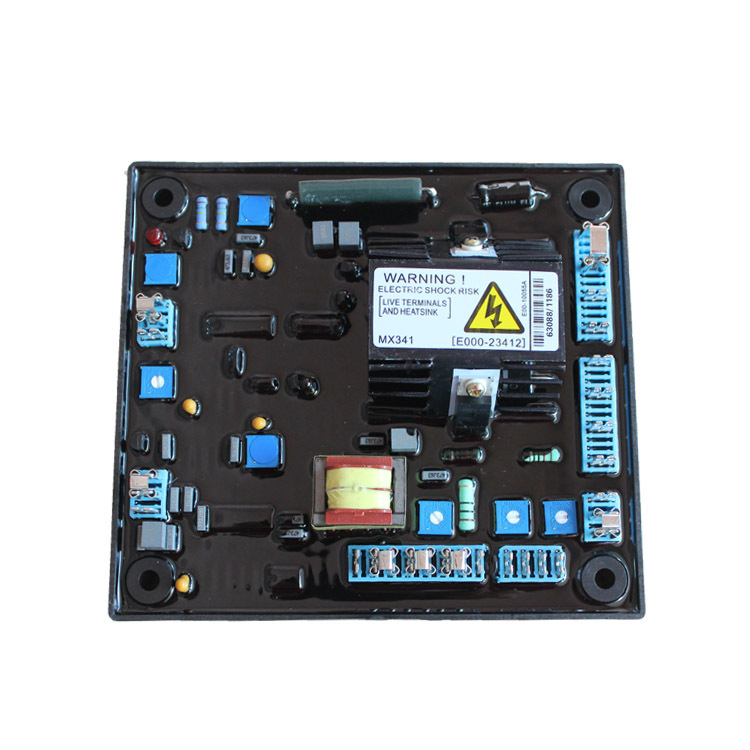

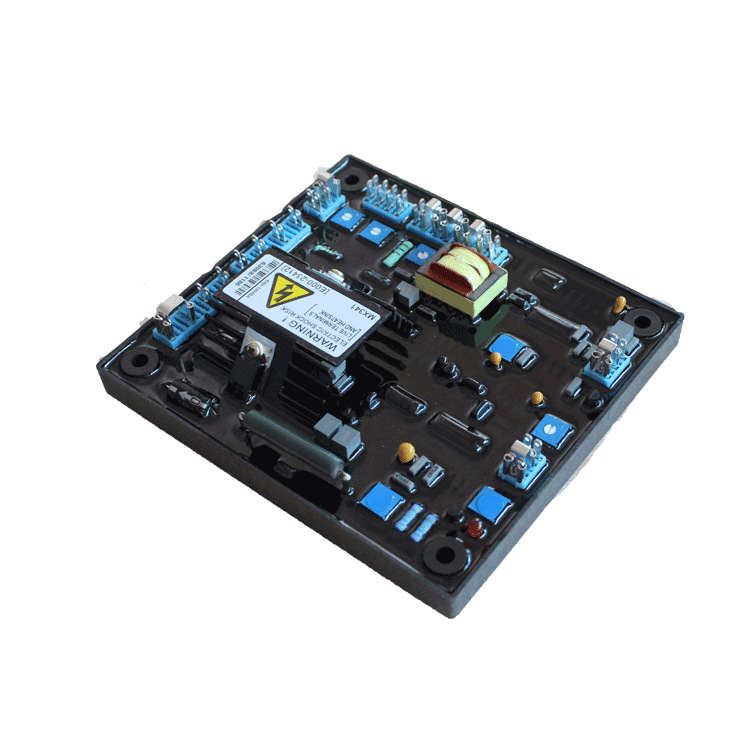

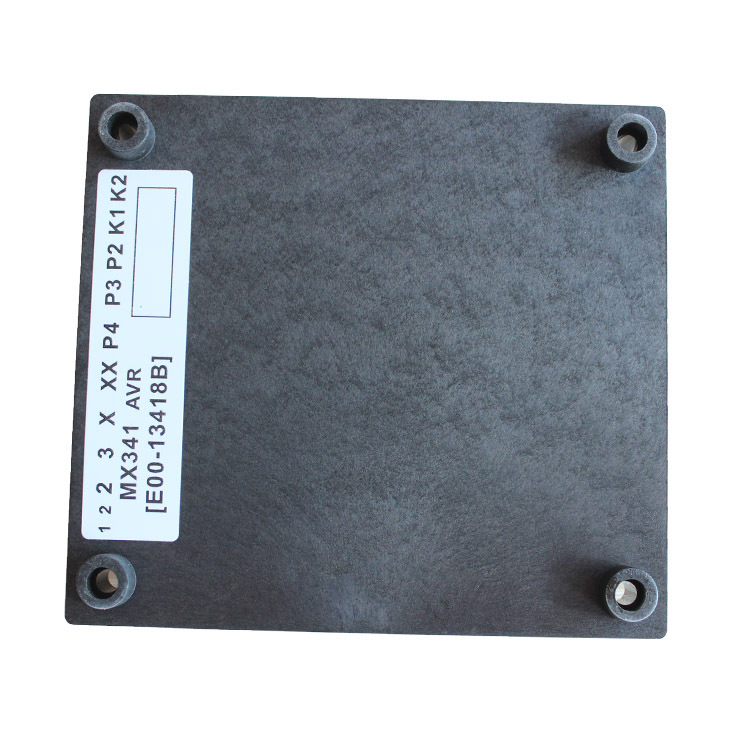

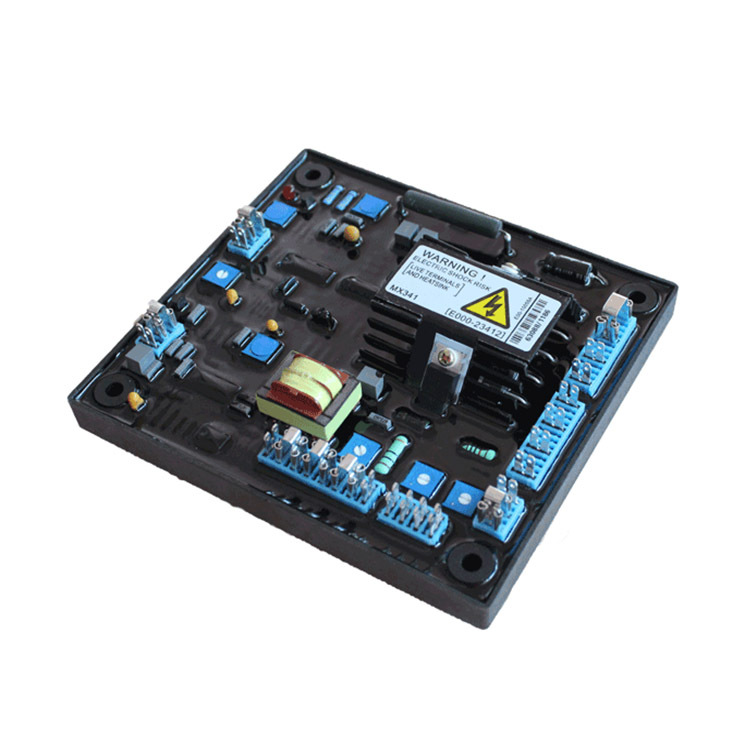

Generator AVR MX341
AVR MX341 Generator AVR 3 Phase Genset Excitation System
AVR MX341 VOLTAGE REGULATOR is a two phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator. Excitation power is derived from a three-phase permanent magnet generator (PMG), to isolate the VOLTAGE REGULATOR control circuits from the effects of nonlinear loads and to reduce radio frequency interference on the generator terminals. Sustained generator short circuit current is another feature of the PMG system.
| Generator AVR 3 Phase | MX341 |
| Sensing Input | 190-264VAC, 1 phase 2 wire |
| Frequency | 50-60Hz nominal |
| Power Input (PMG) | 170-220VAC , 3 phase 3 wire |
| Current | continuous 3A/phase |
| Frequency | 100-200Hz nominal |
| output Voltage | max 120VDC |
| Current | continuous 2.7ADC , intermittent 6A for 10 secs |
| Resistance | 15 Ω minimum |
| Regulation | .+/-1% RMS with 4% engine governing |
| Gnerator Power | 200-500kw |
