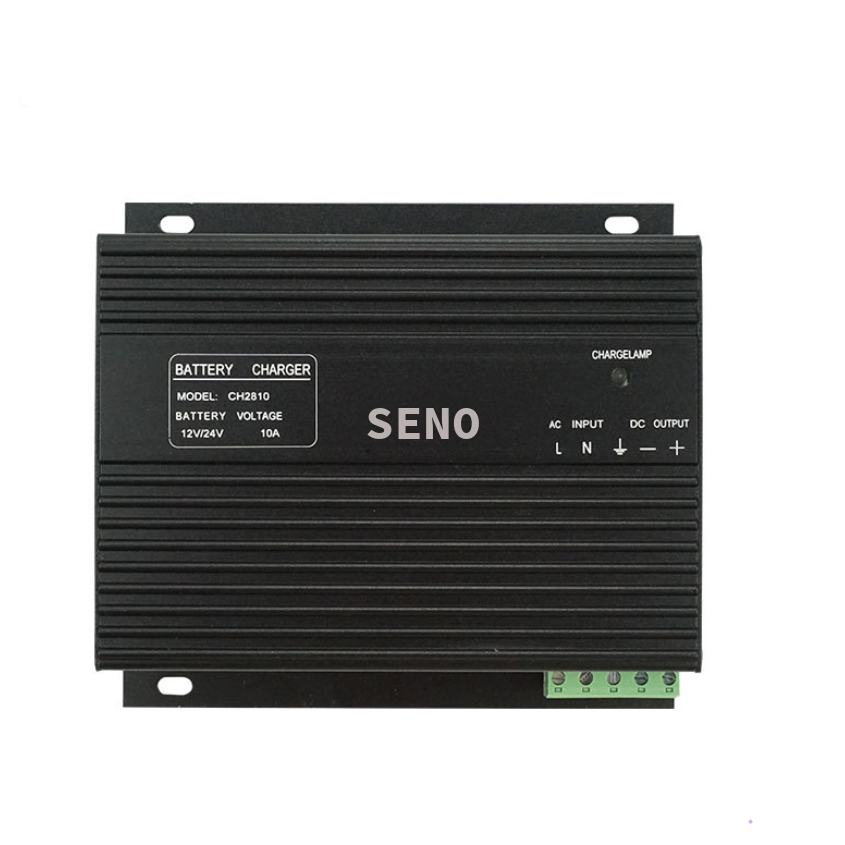

Generator Intelligrt Automatic Battery Charger CH-2810 10A 12V 24V
Battery float charger CH-series is specially designed for starting or working of storage battery in diesel engine. It is a intelligent model of switch structure. It is only one charger in market which can automatic identify charging voltage, current and can automatic switch over corresponding output voltage. It feature in constant pressure, constant current, tricking current,resistance of short circuit and fully automated function.
Data Sheet
| Power Input | Voltage: | 160~265 VAC |
| Current: | 10A ±0.1 | |
| Frequency: | 40~80Hz | |
| DC Output | Voltage | 13.8 VDC,Current 5A--when battery group=12V |
| Voltage | 27.6 VDC, Current 3A--when battery group=24V | |
| Charge Mode | Float charge | |
| DC Voltage Regulation | <±1% | |
| Efficiency | >85%@ Full load | |
| Contact Capacity | 0.5A@120 VAC | |
| Protection | Reverse polarity, over-voltage, short circuit, current limiting |
|
| Environment | Vibration | 1.5G@5~30 Hz |
| 5.0G@ 30~500 Hz | ||
| Operating temperature | -20 to 50 Deg. C | |
| Relative Humidity | Maximum 90% | |
| Storage temperature | -30 to 85 Deg. C | |
