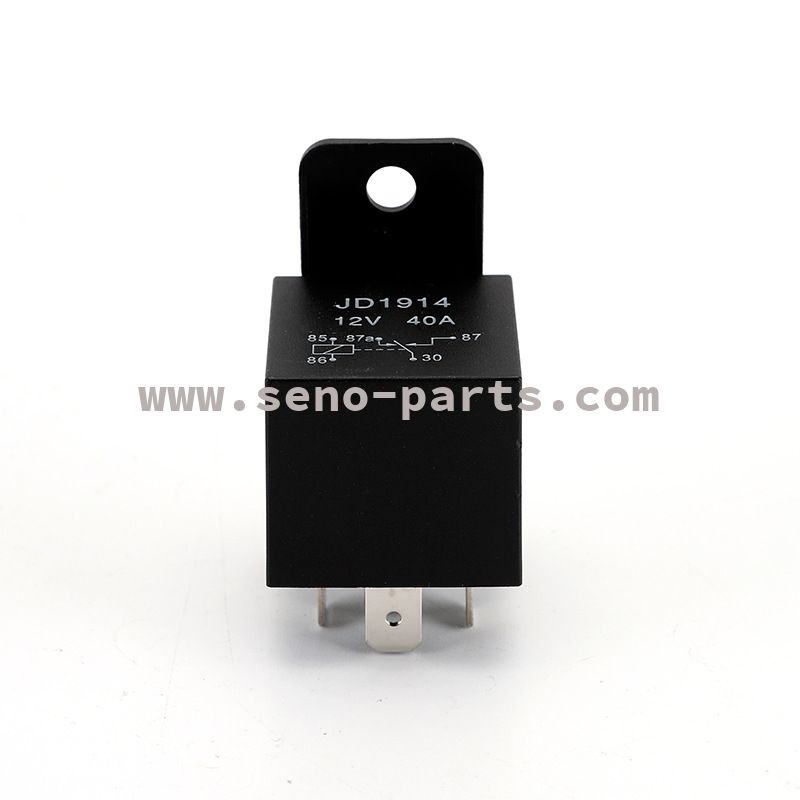

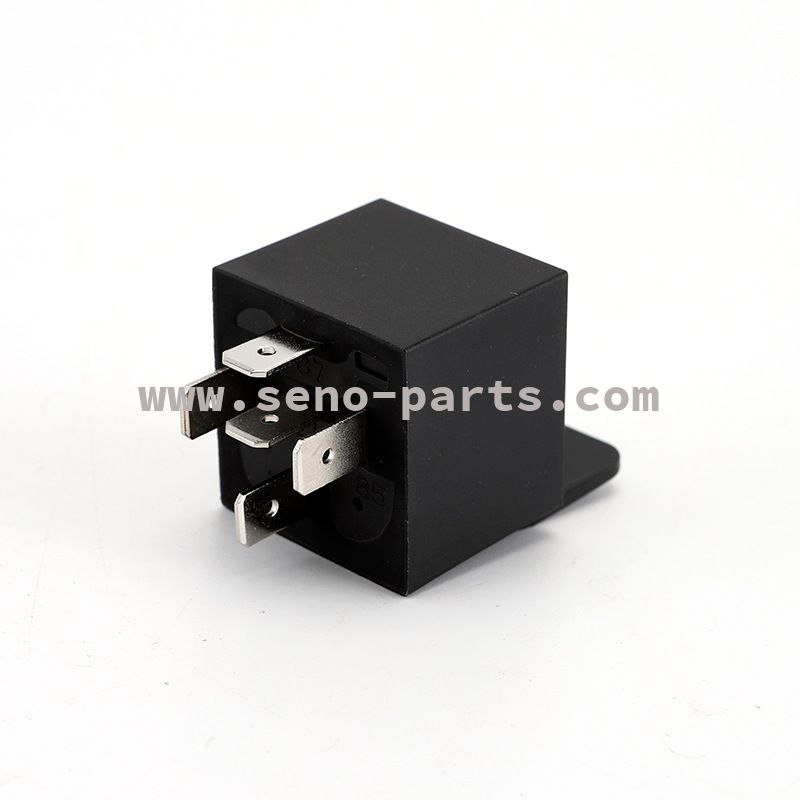

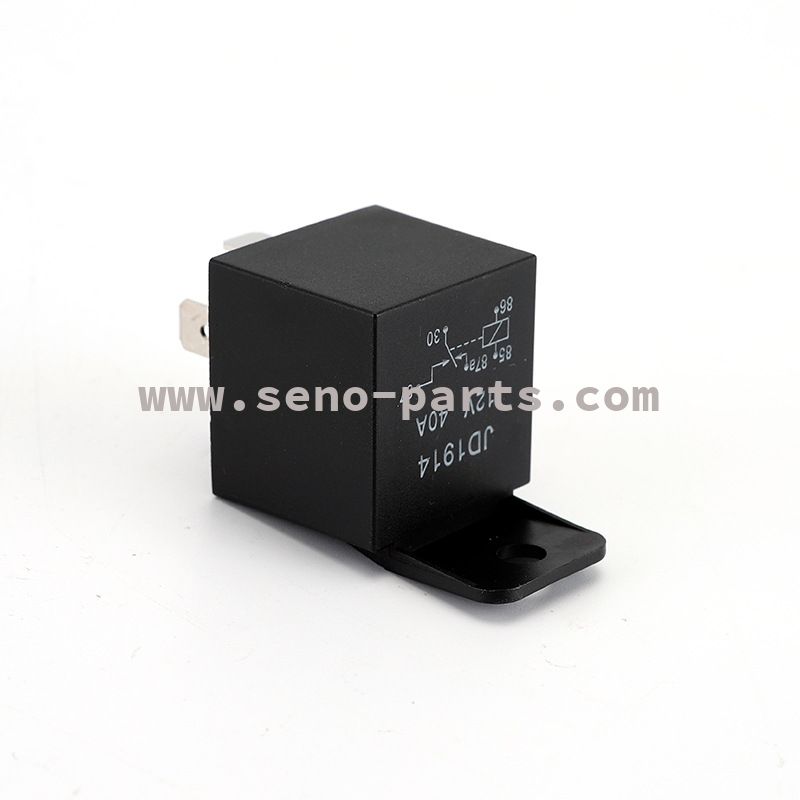

Waterproof car relay 4-pin/5-pin 40A12V/24V

Waterproof car relay 4-pin/5-pin 40A12V/24V

Product features: Large capacity, capable of switching 40 amperes of current; Standard contact forms available include: 1 set of conversion, 2 sets of constant

Working temperature: -40 to+80 ℃

Product use: Automotive control device

External dimensions (length * width * height) (mm): 28.0 * 28.0 * 25.0

● Contact form: 1a, 1c,

Contact capacity: 40A 14VDC

1a: 30A 14VDC

1c: 40A/30A 14VDC

● Coil voltage: 12VDC

● Coil power (W): 1.80

Contact resistance: ≤ 50m Ω

Insulation resistance: ≥ 1,00M Ω

● Service life (times): Electrical 1 * 100000

Mechanical 1 * 10000000

● Dielectric withstand voltage: 500VAC between open circuit contacts

500VAC between coil contacts

Environmental temperature: -40 ℃~+125 ℃

Features:

1. Adopting copper coils, with stronger conductivity and longer service life

2. Use high-quality silver contacts for more stable performance

3. The shell is made of high-quality materials and is resistant to high and low temperatures
