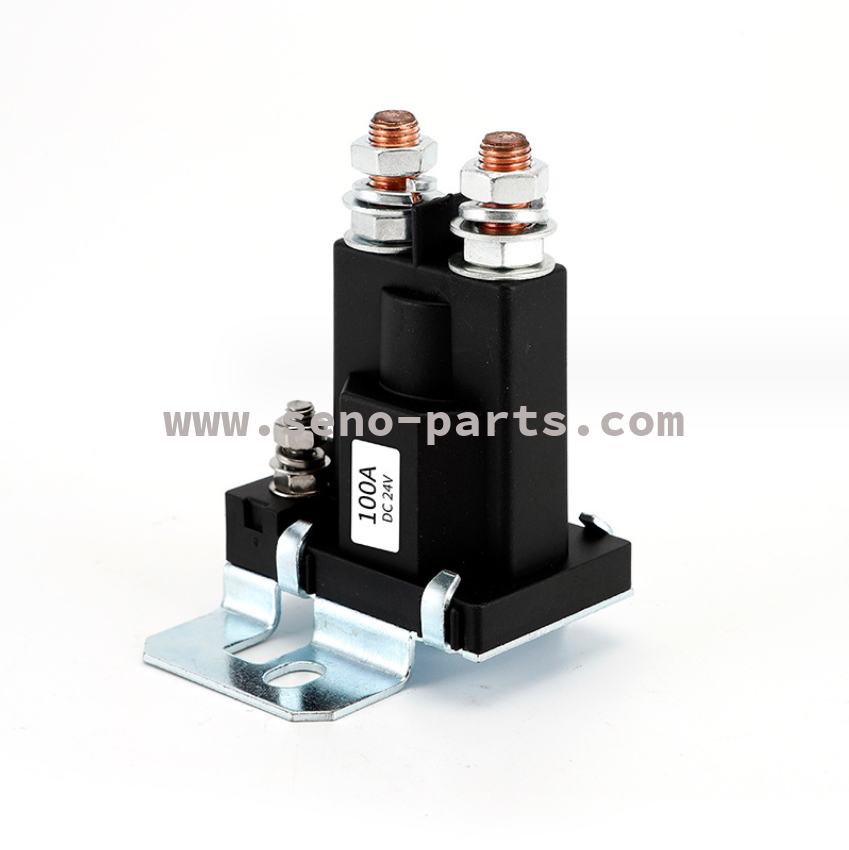

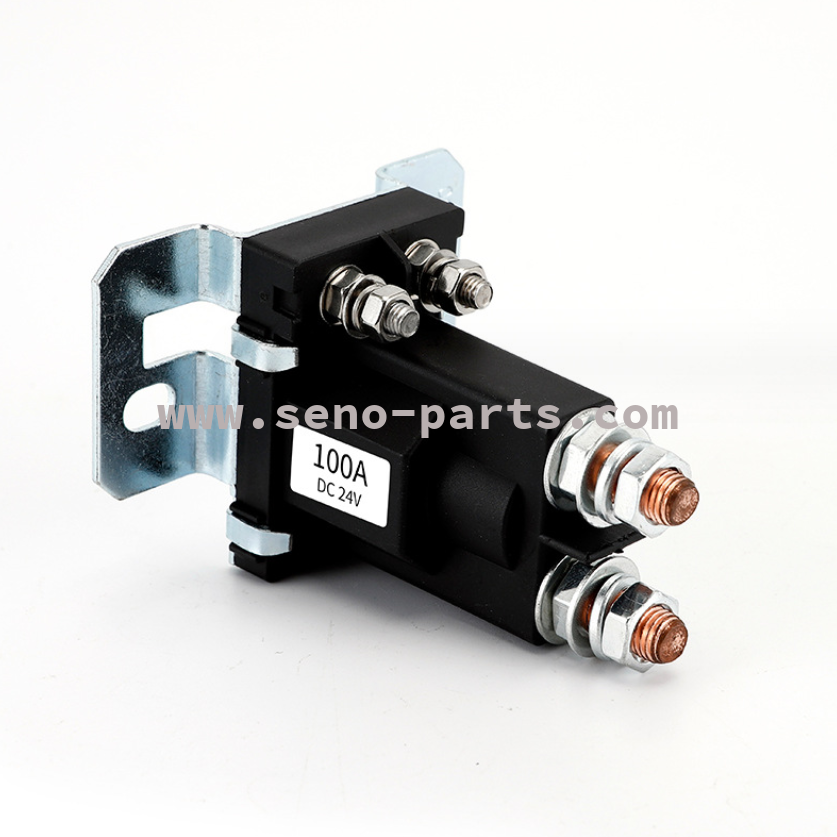

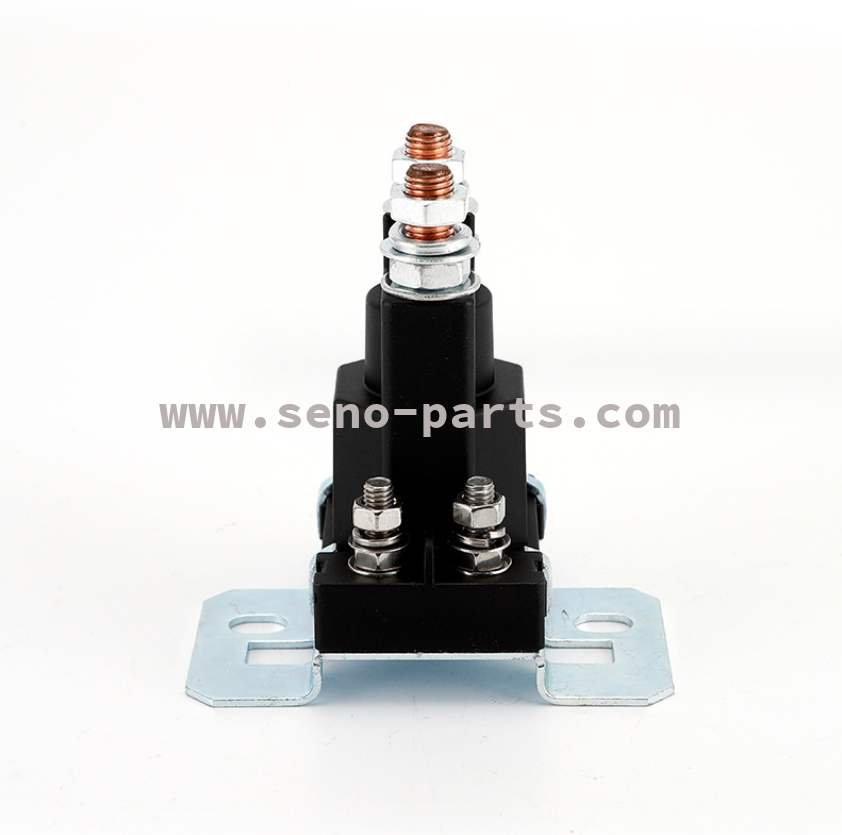

Start relay 100A 12V/24V high-power control switch

Automotive relay start relay 100A 12V/24V

Model: 100A 24V

Contact load: 14v

Contact switching current: 100A

Contact switching voltage: 14V

Contact form: normally open

Rated current: 100A

Rated voltage :100A12V, 100A24V, 150A12V, 15024V, 200A12V, 200A24V, 250A12V, 250A24V, 300A12V, 300A24V

Protective features: dustproof

Coil power supply: DC

Coil power: 7.2W/9.6W

3C rated voltage range: below 36V

Features:

1. Adopting copper coils, with stronger conductivity and longer service life

2. Use high-quality silver contacts for more stable performance

3. The shell is made of high-quality materials and is resistant to high and low temperatures
