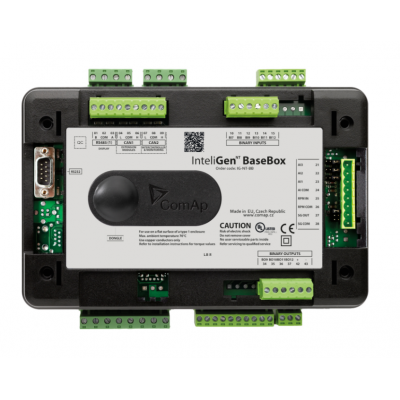

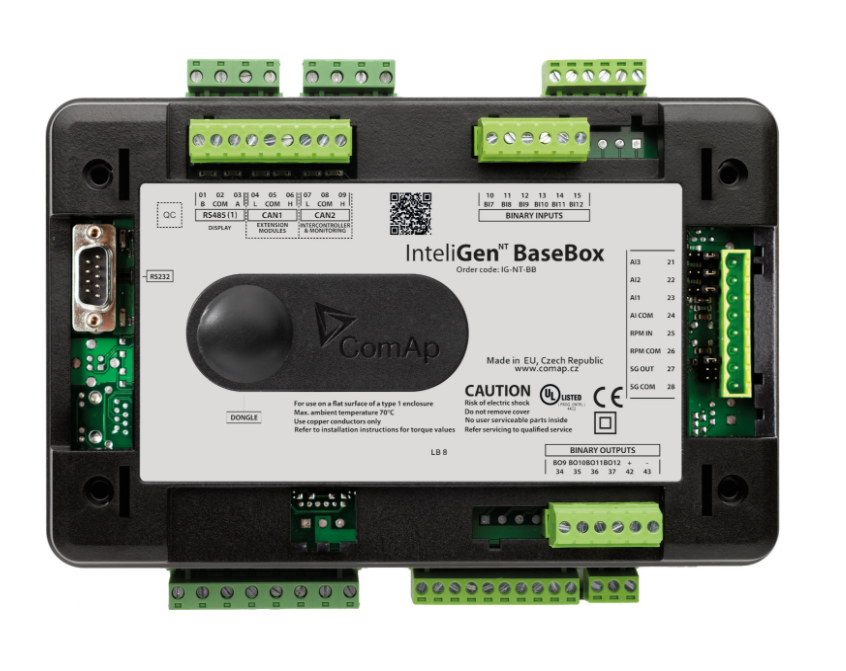

Genset Controller InteliGen NT BaseBox

Genset Controller InteliGen NT BaseBox

Complex Parallel Gen-set Controller with Detachable Colour Display

Marine certified controller.

Gen-set controller for both single and multiple gensets operating in standby or paralleling modes.  Overview of ComAp marine approved products available here

To be used in conjunction with detachable colour displays InteliVision 5, InteliVision 8, or InteliVision 12Touch

Support of engines with ECU (Electronic Control Unit)

Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed

Many communication options – easy remote supervising and servicing

Gen-set performance log for easy problem tracing

Automatic synchronizing and power control (via speed governor or ECU)

AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)

Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr

Mains measurement: U, I, Hz, kW, kVAr, PF

True RMS (TRMS) is used with Voltage, Current and Power measurement

Inputs and outputs configurable for various customer needs

Bipolar binary outputs - possibility to use BO as High or Low side switch

RS232 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface

Controller redundancy

Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values

Integrated PLC programmable functions

Integrated fixed and configurable protections

DIN-Rail mount

Customized firmware solution

With Solution of Application support - manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)
