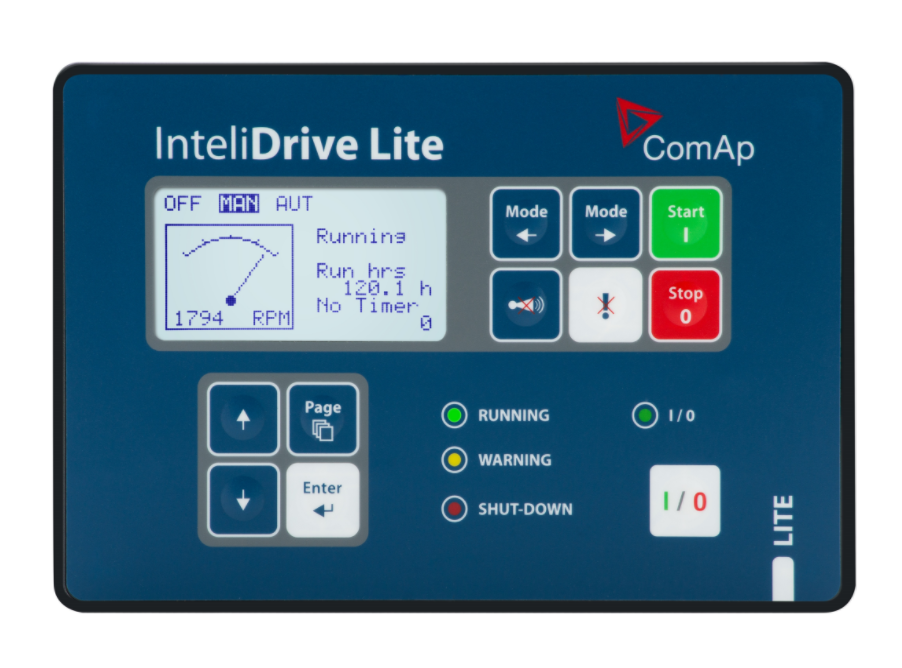

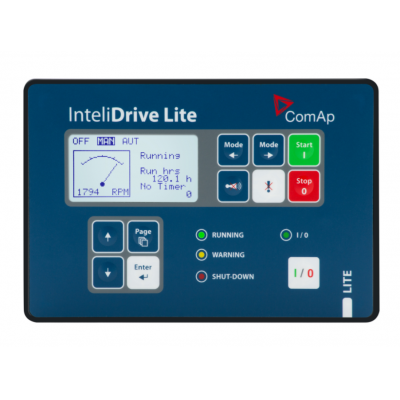

Gen-set Controller InteliDrive Lite

Gen-set Controller InteliDrive Lite

Engine controller for Pumps and Compressors

Engine controller for land-based and marine Tier4 applications

Control, monitoring and protection for both mechanical and electronic diesel/gas engines in one unit

Automatic or manual start/stop of the engine

Programmable On/Off panel button

Support of engines with Electronic Control Unit (ECU) - J1939 or Cummins Modbus

Analog gauge (VDO, Datcon and others) outputs – operator friendly

Smooth engine speed control

7 configurable binary inputs

7 configurable binary outputs

7 configurable analog inputs (3 resistive, 4 voltage) + 2 not configurable voltage inputs

Selectable protections alarm/shutdown

3 level of password protection

USB, RS485/RS232/Modem/Modbus communication

Automatic SMS on alarm

On-line control and monitoring over web pages (embedded web server) via IB-Lite

Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS

AirGate support

2 languages (user changeable)

Real time clock and event history log

PLC functions: PID loop, Comparators, Timers

Push buttons for simple control, lamp test

Front panel sealed to IP65

EN, UL certifications
