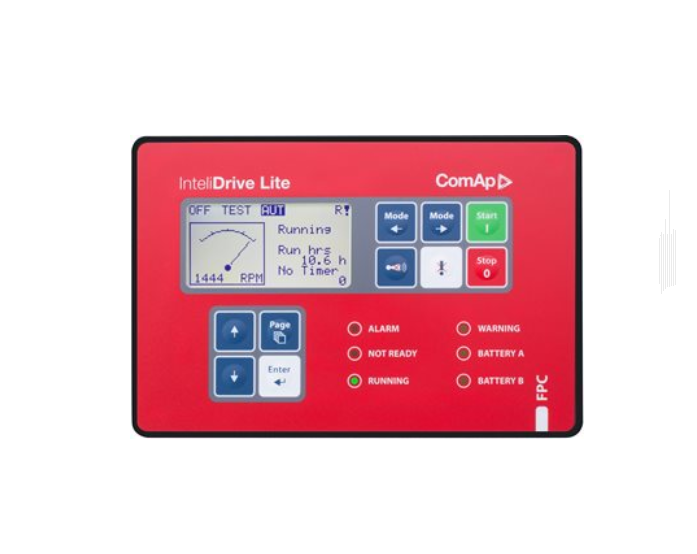

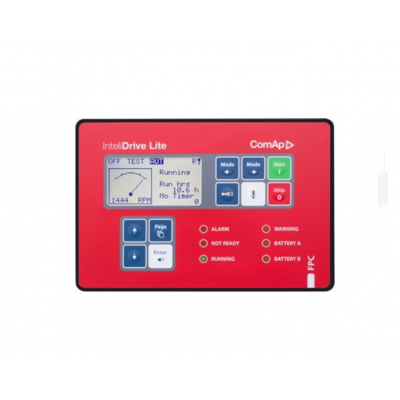

Gen-set Controller InteliDrive Lite FPC

Gen-set Controller InteliDrive Lite FPC

Engine Controller Designed for Diesel Driven Fire Pump Applications

Modular engine controller designed for diesel driven fire pump applications based on the NFPA 20 standard

Automatic and manual starting sequence based on two batteries according to NFPA 20 standard

Support of engines equipped with Electronic Control Unit (ECU) - J1939 or Cummins Modbus interface

Analog gauge (VDO, Datcon) outputs – operator friendly

Engine speed control

3 configurable analog inputs + 2 analog inputs of battery voltage measurement

7 configurable binary inputs and outputs

6 LED indicators (Alarm, Warning, Not Ready, Running, Battery A, Battery B)

Selectable protections alarm/shutdown

1 level of password protection

USB, RS485/RS232/Modem/Modbus communication

Automatic SMS on alarm

On-line control and monitoring over web pages (embedded web server) via IB-Lite

2 languages (user changeable)

Real time clock and event history log

Push buttons for simple control, lamp test

Front panel sealed to IP65

Based on the NFPA20 standards

EN certification

Comparator with hysteresis regulation

If you didn't find the P/N you need,just feel free to contact us !
