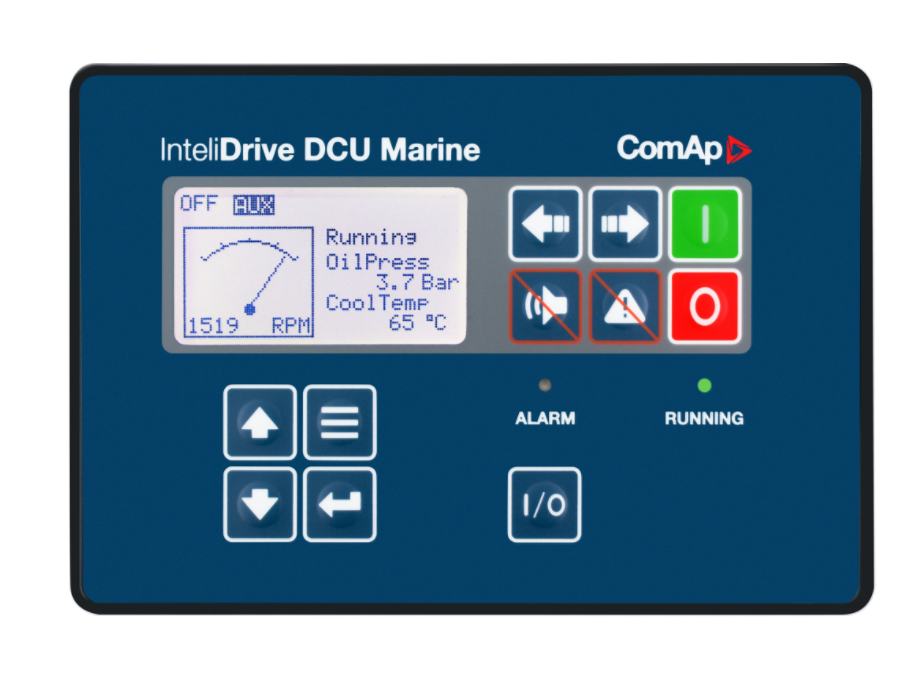

Gen-set Controller InteliDrive DCU Marine

Gen-set Controller InteliDrive DCU Marine

Engine controller for Marine Applications

Dedicated Emergency, Auxiliary, Harbour and Propulsion engines application

Single speed application for generators and variable speed application for propulsion, pumps, compressors

Support of wide range of EFI (ECU) engines with Tier 4F support

Support of multiple J1939 devices on one CAN bus line

Connection to engine via primary J1939 and backup J1587 buses or Cummins Modbus

Remote monitoring via Modbus, Ethernet and AirGate

Configurable Modbus RTU and Modbus TCP

RS232, RS485 via ID-COM, Ethernet communication support via IB-NT

WebSupervisor support for remote supervising and monitoring

Redundant architecture: Main unit + Backup module

Backup ID-RPU module with broken wire protections

Speed/load control via J1939 or J1587 buses

Symmetrical load sharing for propulsion engines with J1939 (via CAN bus)

Power management controller cooperation over CAN bus (IG/IS-NTC-BB)

Integrated clutch control

14 binary inputs

14 binary outputs

8 analog inputs

Marine certified extension modules for expandable number of Input/Outputs

80× AIN, 32× AOUT, 112× BIN, 112× BOUT

Load sharing for propulsion engines, Integrated clutch control for propulsion engines

Switching between primary and secondary battery

Internal configurable PLC with large set of functions

PLC lock capability to keep your know-how safe

Event driven History record up to 4000

Customizable colour HMIs, incuding InteliVision 12T OEM support

I-RD-CAN Marine remote display is replaced by ComAp HMIs InteliVision
