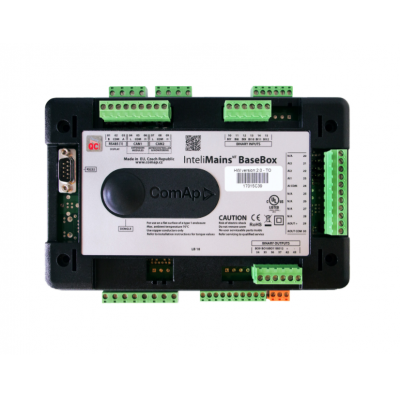

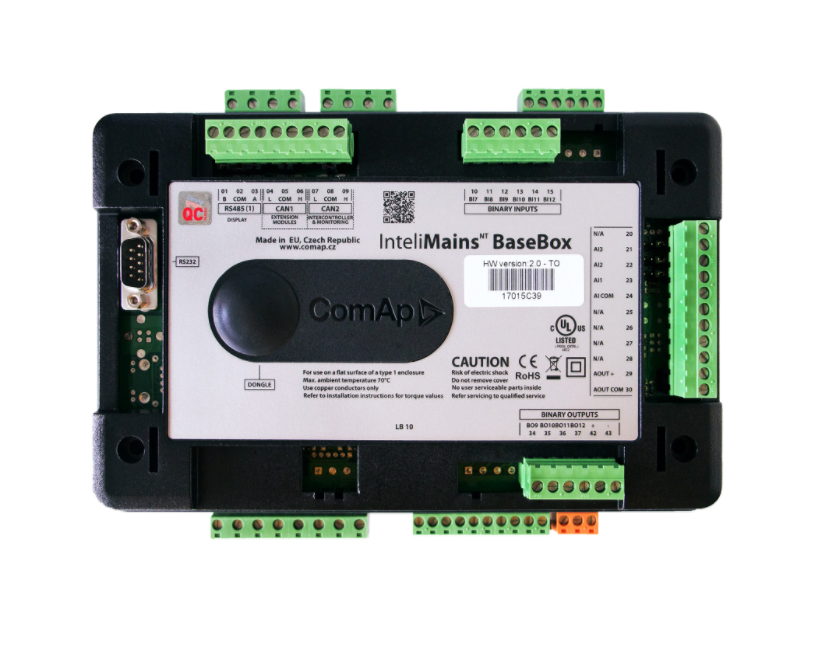

Gen-set Controller InteliMains NT BaseBox

Gen-set Controller InteliMains NT BaseBox

Mains Supervision Controller Base Unit for Use with Detachable Colour Display

For multiple up to 31 gen-sets operating in parallel to mains (or isolated parallel)

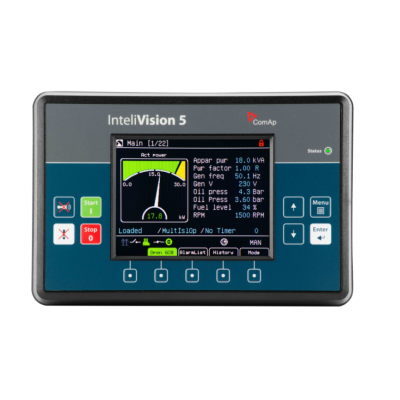

To be used in conjunction with detachable colour displays InteliVision 5, InteliVision 5 RD or InteliVision 8

Import/export power control of the gen-set group; many different power control modes available

Reverse synchronization of the loaded gen-set group to mains

Coupling of several synchronized mains to a common bus

Allows to build complex applications with more mains incomers, bus-tie breakers etc.

AMF function, Baseload, Import / Export, Peak shaving

Mains measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr

Bus measurement: U, I, Hz, kW, kVAr, PF

Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A

True RMS (TRMS) is used with Voltage, Current and Power measurement

Inputs and outputs configurable for various customer needs

Bipolar binary outputs - possibility to use BO as High or Low side switch

Event-based history (up to 1000 records) with customer-selectable list of stored values

Integrated PLC programmable functions

Integrated fixed and configurable protections

DIN-Rail mount of the controller

Customized firmware solution

Possible firmware applications:

MCB application (controller is controlling Mains Circuit Breaker and provides import/export to Mains functions and other related features)

MGCB application (controller is controlling Mains Circuit Breaker and Master Gen-set Circuit Breaker and provides import/export to Mains functions and other related features)

BTB application (controller is controlling Bus Tie Breaker and provides enhanced options for breaker control dependent on various user settings and left and right bus parameters, full support of control groups is included)

FDR application (contoller is controlling Load Circuit Breaker and provides wide variety of function related to load management)

BC application - manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)
