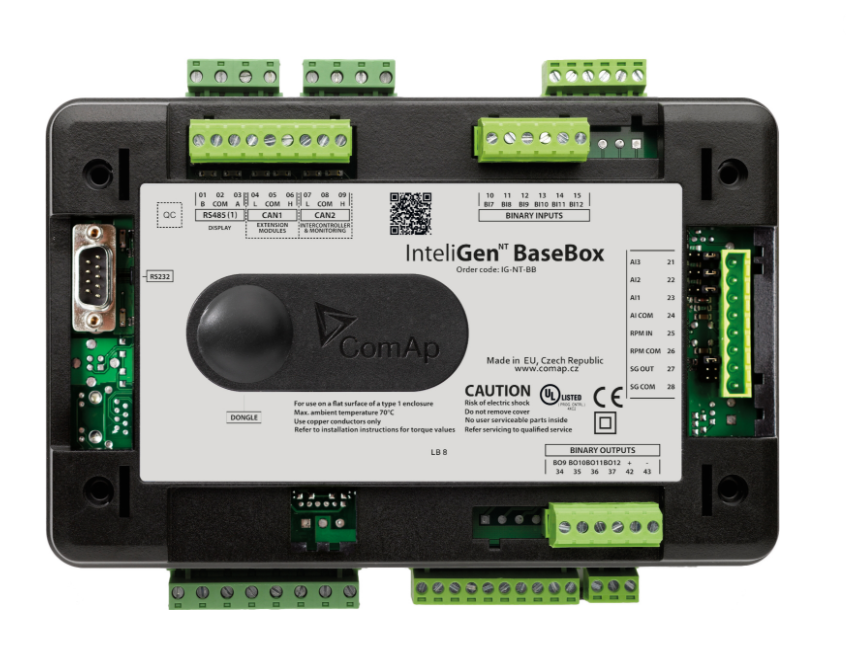

Gen-set Controller InteliGen NTC BaseBox GeCon

Gen-set Controller InteliGen NTC BaseBox GeCon

Complex Parallel Generator Controller with Detachable Colour Display

Comprehensive generator controller for both single and multiple gensets operating in standby or paralleling modes

To be used in conjunction with detachable colour displays InteliVision 5 or InteliVision 8

Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed

Many communication options – easy remote supervising and servicing

Generator performance log for easy problem tracing

Automatic synchronizing and control breaker

AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)

Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr

Mains measurement: U, I, Hz, kW, kVAr, PF

Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A

True RMS (TRMS) is used with Voltage, Current and Power measurement

Inputs and outputs configurable for various customer needs

Bipolar binary outputs - possibility to use BO as High or Low side switch

1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; secondary RS485 converter is isolated

AirGate support

Ethernet connection (RJ45)

USB 2.0 slave interface

Controller redundancy

Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values

Integrated PLC programmable functions

Integrated fixed and configurable protections

DIN-Rail mount

Customized firmware solution

------------------------------------------------------------
Order instruction: To run the GeCon software you need to order InteliGen NTC BaseBox, and then install the correct GeCon software:

• GeCon LandBased (included in standard firmware)

• GeCon Marine (special dedicated firmware)

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement.
