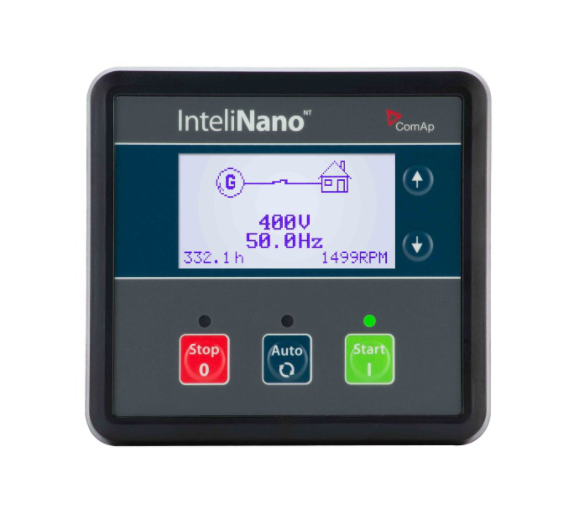

Gen-set Controller InteliNano NT Plus

Gen-set Controller InteliNano NT Plus

Stand-by and prime power application in one model

1/3 Phase generator voltage measurement (3/3 phase when used as MRS controller)

1 Phase generator current measurement

3 Phase mains voltage measurement

Connection type and voltage auto detect

Various generator and engine protections

Biggest LCD screen in its class

Icon menu, no text

Automatic or manual MCB and GCB control

"Zero" power consumption mode

Battery voltage, Service time and Running hours indication

All setpoints and I/O's configurable via front panel

Ability to catch up on running engine (for manual engine start)

Light Tower mode supported

Event log (10 events)

Up to 3 analog inputs (shared with binary inputs)

Up to 6 binary inputs (1 binary input is shared with binary output)

2 high side - high current outputs

4 high side binary outputs

D+ pre-excitation terminal

ECU support (CAN J1939)

USB one-cord power supply and programing

License free PC configuration software (NanoEdit)

Standard cut-out dimension 96x96

Outside dimension 110x100

IP 65 (when optional gasket is used)
