InteliVision 5 Display Unit

InteliVision 5 Display Unit

 5,7" Colour Display Unit

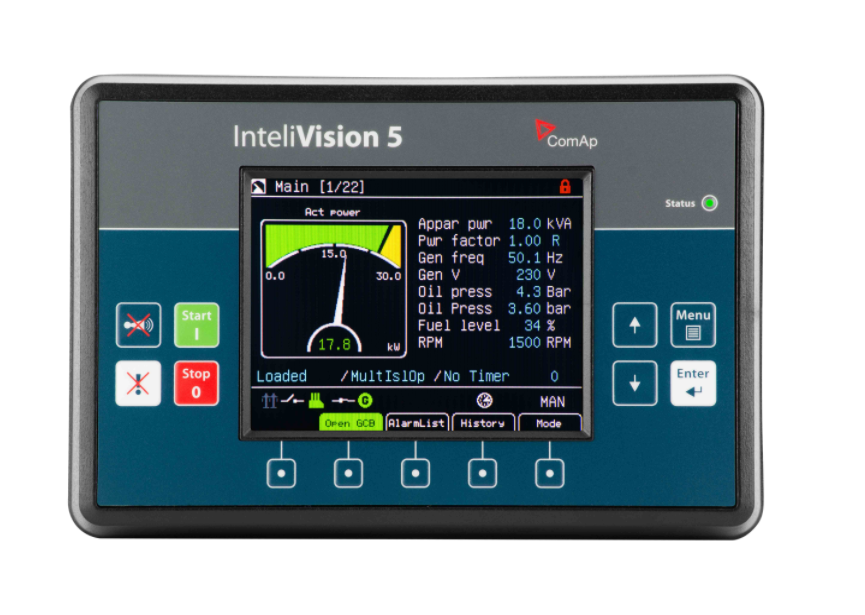

InteliVision 5, industrial operator panel equipped with 5,7” colour screen, is dedicated together with the main ComAp controller to visualise and control single gen-set in various applications.

5,7” Colour TFT Display with resolution 320 × 240 pixels

Local and Remote display for single controller monitoring

Plug and play operation (auto configuration based on controller application)

Suppported controllers :

InteliSys GAS

InteliGen NT BaseBox

InteliGen NTC BaseBox

InteliSys NTC BaseBox

InteliMains NTC BaseBox

InteliSys NTC Hybrid

Direct connection to the controller

Simple, fast and intuitive control

Easy drag and drop screen configuration in graphical editor

Five active buttons – fast access to important data

Configurable active buttons

Support of Tiers 4 icons

Mounting screw available at the rear face of InteliVision 5 to mount a compatible controller

Same language support as the controller including graphic languages

Communication connection via RS-485 (galvanically separated)

Same cut out as InteliGen NT

Operating temperature: –40 to +70°C

Face is sealed to IP65

EMC, climatic and mechanical tests

CE, UL certification

IMPORTANT COMPATIBILITY NOTICE :

It is recommended to upgrade both display unit and controller firmware to the newest version in order to fully utilize features of ScreenEditor within GenConfig. For more information please see the New Feature List.
