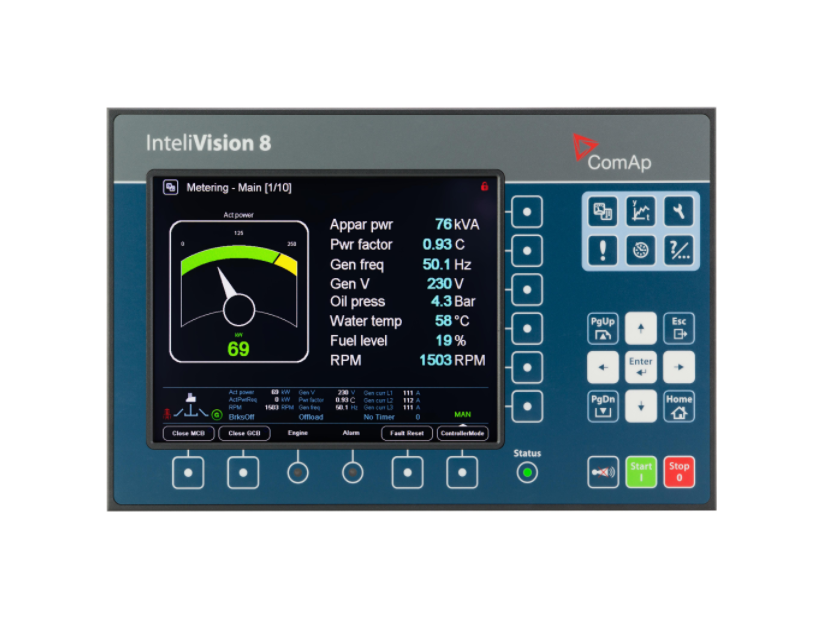

InteliVision 8 Display Unit

InteliVision 8 Display Unit

 8" Colour Display Unit

InteliVision 8, industrial operator panel equipped with 8” colour screen, is dedicated together with the main ComAp controller to visualise and control single gen-set in various applications.

8" colour TFT display with resolution of 800 x 600 px

PLUG and PLAY operation (auto configuration based on controller application)

Supported controllers :

InteliGen NT BaseBox

InteliGen NTC BaseBox

InteliSys NTC BaseBox

InteliMains NTC BaseBox

InteliSys NTC Hybrid

InteliDrive DCU

InteliDrive DCU Marine

InteliDrive Mobile

InteliDrive Mobile Logger

Complete access to all control and monitoring functionss

More information in less time

Fast and intuitive navigation

TRENDS monitoring screen

USB flash disk file storage (export/import trends, history, archive of controller and InteliVision 8 firmware to USB stick)

Quick auto login with USB stick

User’s picture import

Easy Drag and Drop screen configuration in graphical editor

ADAPTIVE and COLOUR alarm list

Configurable soft keys buttons:

Fast skip to any screen

Binary signal activation – S/R button / toggle button / pulse generator

Association to various Genset commands

Large History screen

Support of Tier 4 Final icons

Communication connection via of RS232/485 and CAN bus

Same cut profile as IS-Display (simple replacement of monochrome displays)

Mounting screw available at the rear face of InteliVision 8 to mount a compatible controller

Direct connection to the controller (converters are not needed)

Designed to be mounted in both monitoring and engine room

Windows CE operating system

Operating temperature: –20 to + 70°C

Face is sealed to IP65

EMC, climatic and mechanical tests

CE, UL, cUL certification

IMPORTANT COMPATIBILITY NOTICE :

It is recommended to upgrade both display unit and controller firmware to the newest version in order to fully utilize features of ScreenEditor within GenConfig. For more information please see the New Feature List.
