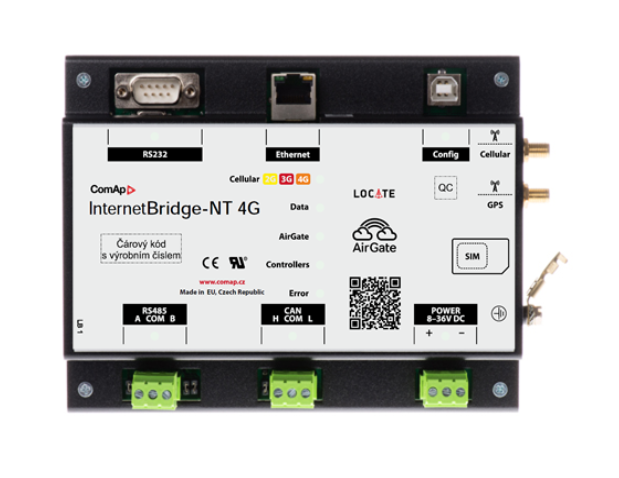

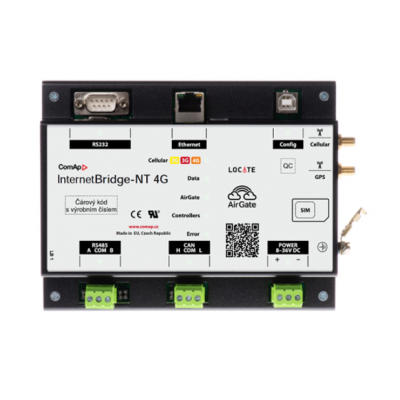

InternetBridge-NT 4G communication module

InternetBridge-NT 4G communication module

Communication Module with 4G/Ethernet Connection

Internet connection for one or more ComAp controllers, either by Ethernet cable or by built in cellular modem

Wireless high speed GPRS/UMTS modem built in

Supports all cellular packet data systems from GPRS to LTE (2.5G to 4G)

3G variant has full multiband support – modem works globally

Two 4G variants supporting two different frequency band groups

Ethernet wired connection for local LAN connection

Single module can be used for multiple controllers on the same site (connected via CAN or RS485)

MODBUS/TCP, SNMP protocol support – direct connection to building management and other systems

Includes ComAp AirGate technology – easy plug-and-play connection anywhere (no fixed IP needed)

Designed for WebSupervisor – fully supported by ComAp’s cloud-based remote monitoring system

Global positioning system built in* – keep track of your equipment

Durable metal housing with DIN rail mount

SIM card holder access without disassembly

SMA connectors for external GPS and GSM antenna (4G/LTE antenna is part of the package)

Wide range 8–36 VDC supply voltage

Works with ComAp monitoring software in either direct connection or via AirGate technology

Fully supported controllers

Controllers based on InteliGen NT and InteliSys NT platform used with a standard firmware

Partially supported controllers

Controllers based on platforms InteliLite NT, InteliCompact NT, InteliDrive Lite, InteliDrive Mobile, InteliDrive DCU

Support of the above listed platforms is limited to Direct or AirGate connection from ComAp monitoring and configuration tools and sending active e-mails

Not supported controllers

Controllers based on plaforms InteliSys CU and InteliGen CU, all other legacy controllers

Note: Support for a specific controller branch is also depending on the version of the controller firmware.
