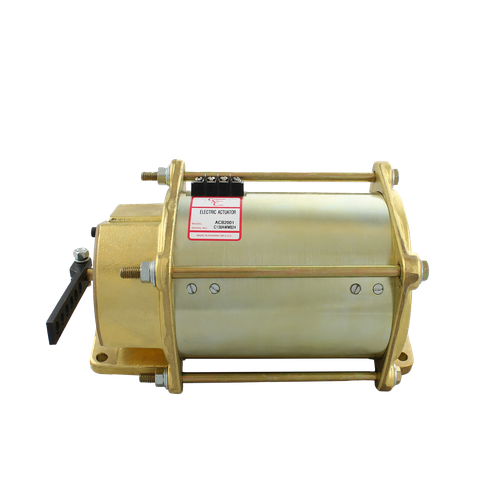

GAC actuator ACB2001

GAC actuator ACB2001

The ACB2001 actuator is a rotary output, 24V, linear torque proportional electric servo designed for mechanical actuation of fuel system control levers requiring torques in the 5 lb ft range. The actuator is energized by appropriate speed control unit signals, and is capable of 35 degrees of rotation with torques as high as 12 Lb-Ft. Internal springs provide fail safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. Both CW and CCW shafts are available. Engine applications include large block pumps, and dual medium and some large size carburetors.

Features

• Rapid Response to Transient Conditions

• Mutliple Mounting Positions

• Uni-Directional CW/CCW

• Internal Return Spring

• Maintenance Free

• Universal Design

• Easy Installation
