GAC actuator ADB120

GAC actuator ADB120

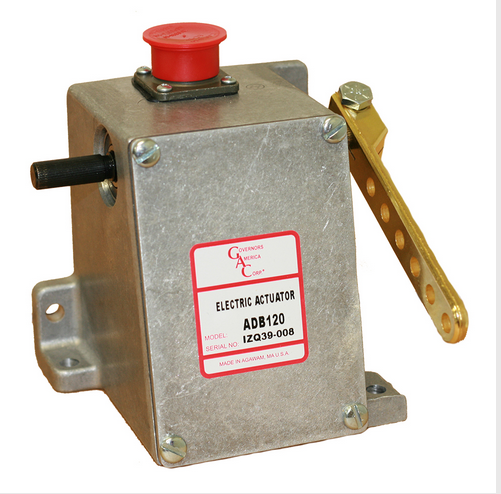

The 120 SERIES electric actuator is a rotary output, linear torque, proportional servo. This electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides fail safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. This design combines fast operation, multi voltage usage, wider rotation angle, and proven reliability. The actuators can operate directly on 12, 24, or 32 volt battery supplies.

Features

• Rotary output linear torque proportional servo

• Small, low cost, low friction model

• 1.0 lb-ft of torque

• Suitable for rotary or small inline fuel pumps of small carburetors

• Ideal for fuel systems on engines up to 150 HP

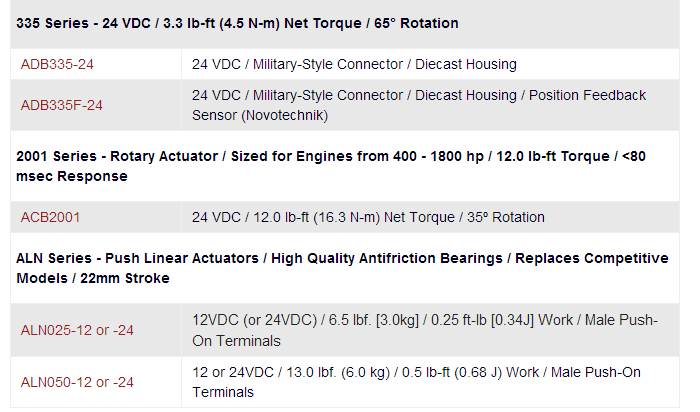

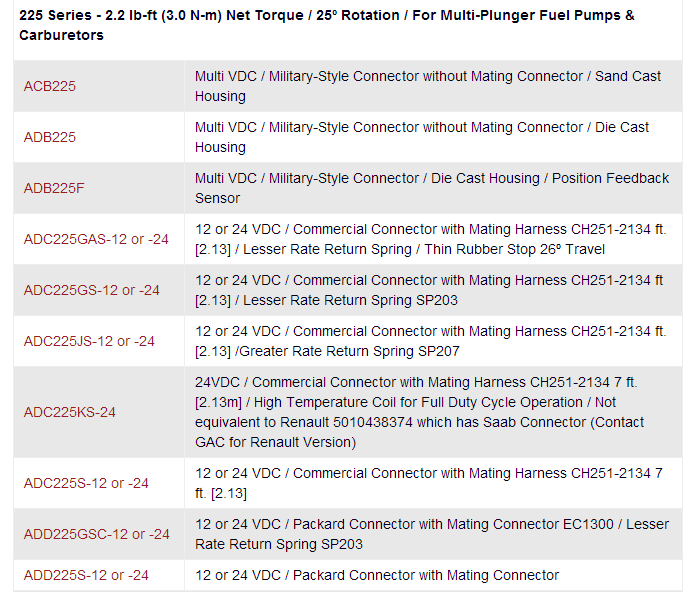

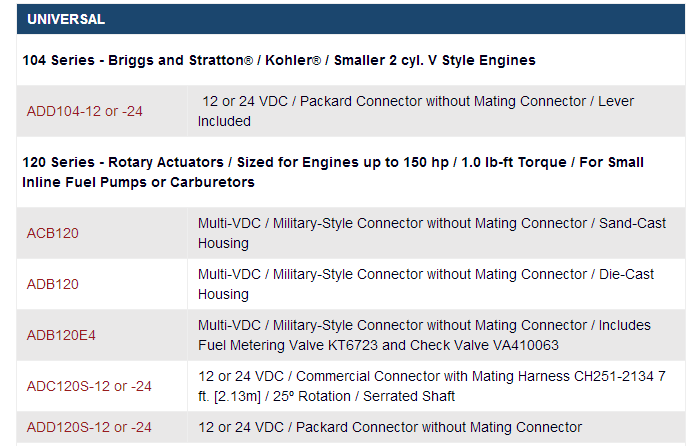

Below Universal electric actuator also can be supplied.

If you need related supporting products, please contact us.Thank you.
