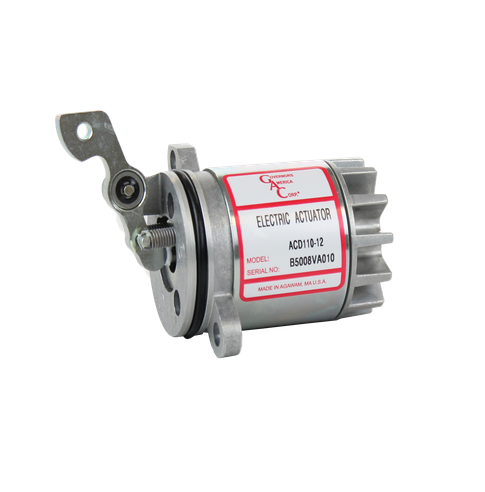

GAC actuator ACD110-12
GAC actuator ACD110-12
The 110 Series Integral Actuator is designed to mount directly to DEUTZ 1011 series 2, 3 and 4 cylinder engines in place of the electric stop solenoid and available in 12 and 24 VDC. GAC’s unique linear electromechanical technology provides proportional actuator movement, based on actuator coil current. This unique, optimum fuel control, actuating device will outperform externally mounted types of electric actuators. An integral’ high performance speed control system results when the 110 Series electric actuator in installed on the engine and electrically connected to complementing governor system components. no external linkages or brackets are required and no extra DEUTZ parts are needed
Features
| Easy Installation |
| Approved by Deutz Diesel |
| High Quality Construction |
| Optimum Fuel Control |
| Fast Response to Transcients |
| Outstanding Reliability |
| Designed for High Temperature Applications |
| Ideal for Variable and Constant Speed |

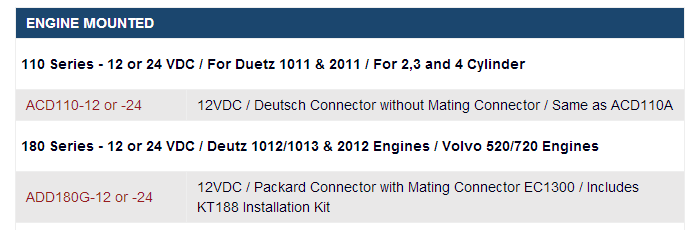

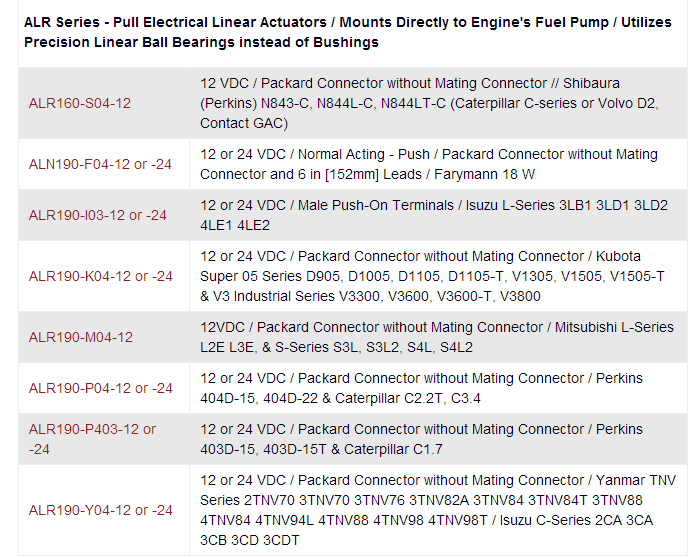

Below Engine Mounted electric actuator also can be supplied.
If you need related supporting products, please contact us.Thank you.
