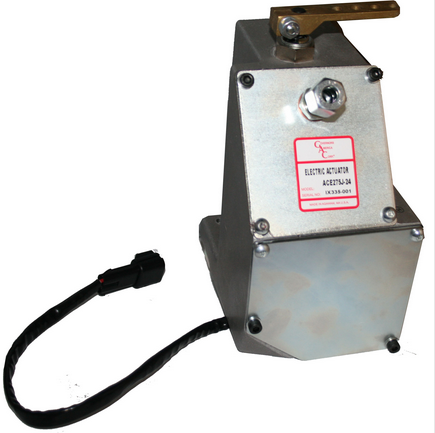

GAC actuator ACE275J-24

GAC actuator ACE275J-24

The 275 Series Electric Actuator is a second generation design more powerful than its predecessor. It is for Bosch-Style “P” 3000-7000 fuel injected Pumps. Coupling the 275 Series with a fuel pump results in a high performance fuel control system without external linkages or brackets. Two isolated chambers eliminates the possibility of any magnetic particles collecting and jamming the actuator. As a result, the 275 Series typically outlasts the life of a diesel engine and is maintenance-free. Camshaft bearing retainer kits, position feedback transducer and heavy duty bearing retention options are available

Features

Optimum Performance for In-line Pumps

Includes Manual Rack Return Mechanism

Stop Lever

Mounts Directly on Bosch ‘P’ and ‘RP 21’ Fuel

Injection Pumps in Place of a Mechanical Governor

Control Up to 12 Cylinder Pumps

Adjustable Maximum Fuel Limit

Below Pump Mounted electric actuator also can be supplied.

If you need related supporting products, please contact us.Thank you.
