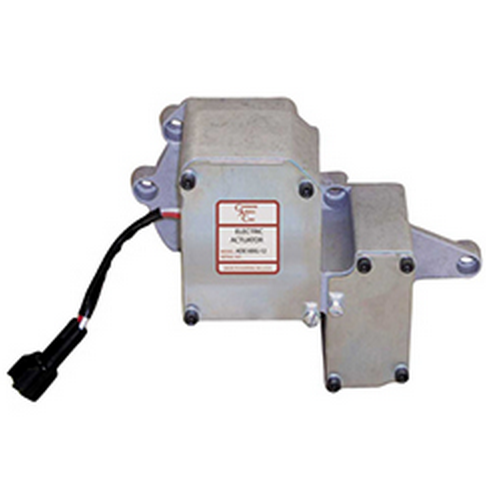

GAC actuator ADD180G

GAC actuator ADD180G

The 180 SERIES Integral Actuator is designed to mount directly to Deutz 1013/2012 and Volvo 520/720 engines. The existing mechanical governor is removed from the engine and the 180 SERIES integral actuator is mounted in its place. GAC’s unique electromechanical technology provides proportional actuator movement, based on actuator coil current. This unique, optimized fuel control will out-perform externally mounted electric actuators. An integral high performance speed control system results when the 180 SERIES electric actuator is installed on the engine and electrically connected to compatible GAC governor system components. No external linkage or brackets are required.

Features

For DEUTZ 1012 & 1013/2012 and VOLVO520/720 Engines

Replaces the existing mechanical governors

Spring balance system that allows fuel rack to return

Mating half connector consistent with type used by engine manufacturers

Below Engine Mounted electric actuator also can be supplied.

If you need related supporting products, please contact us.Thank you.
