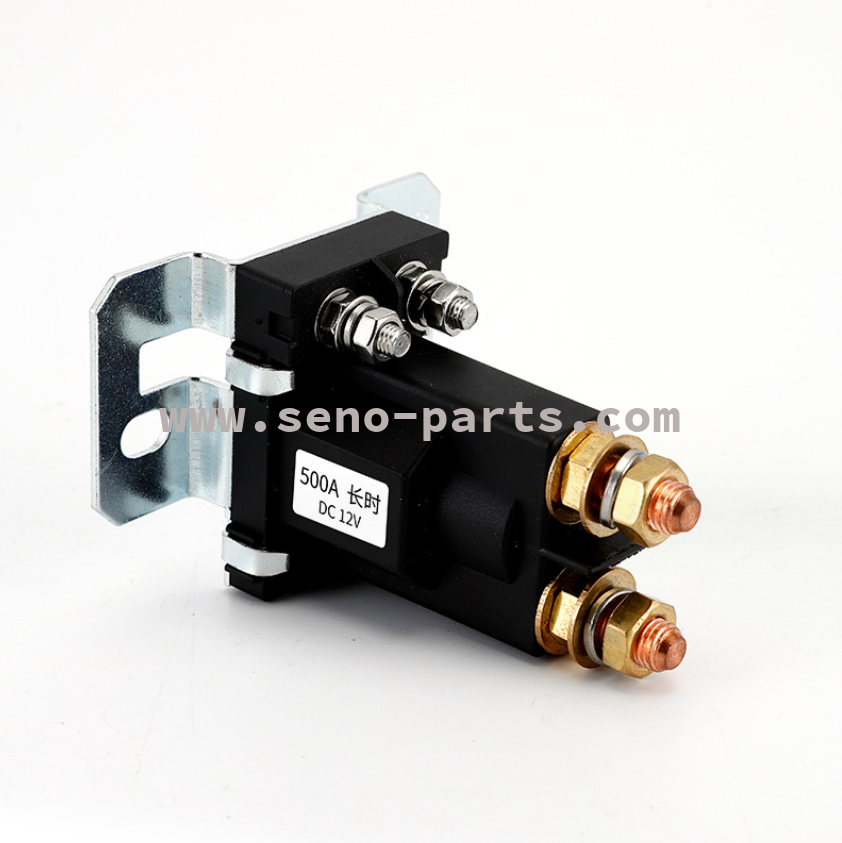

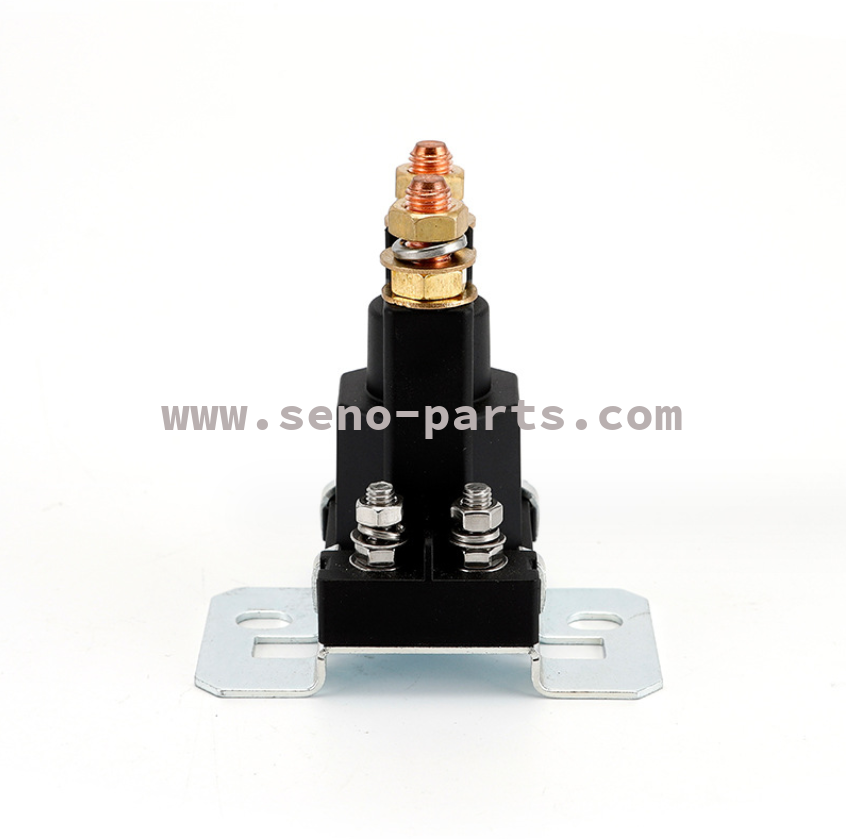

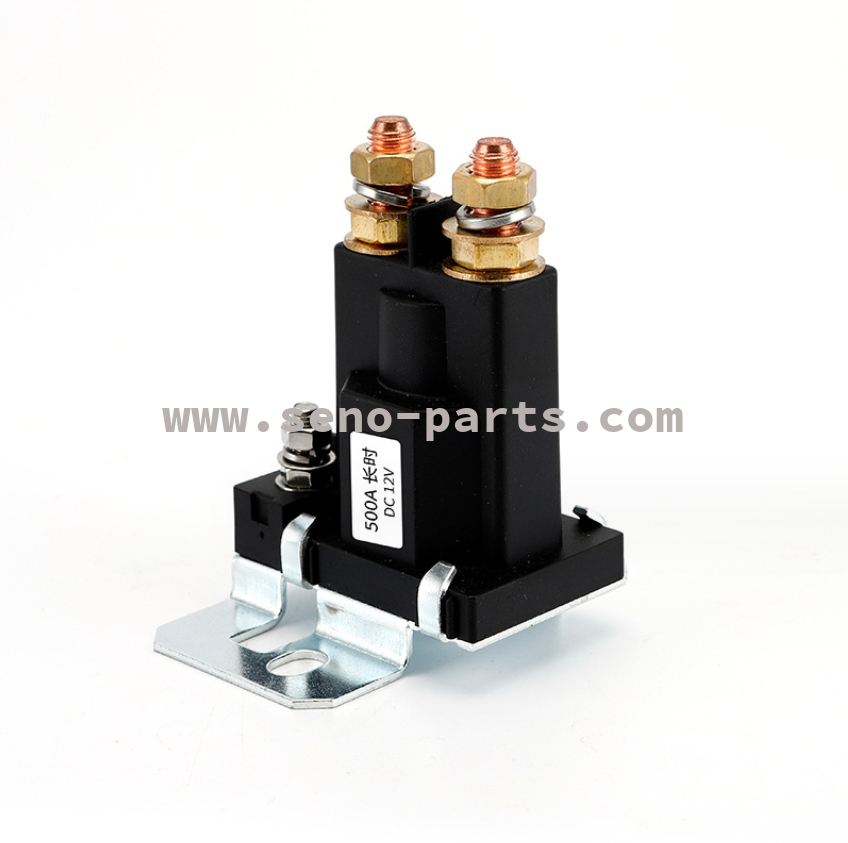

 Automotive relay 500A 12V/24V start relay
 Automotive relay 500A 12V/24V start relay  Automotive relay 500A 12V/24V start relay  Automotive relay 500A 12V/24V start relay

Automotive relay 500A 12V/24V start relay

P/N : 500A 12V/24V
Product Attributes :

 Automotive relay start relay 500A 12V/24V

Product Description

 Automotive relay start relay 500A 12V/24V

Model: 500A 12V

Contact load: 12V-500A

Contact switching current: 500A

Contact switching voltage: 14V

Contact form: normally open

Rated current: 500A

Rated voltage: 500A-12V9.6W iron nut starter relay、500A-24VV9.6W iron nut start relay,500A-12V7.2W Copper Nut Start Relay,

500A-24V7.2W Copper Nut Start Relay,500A-12V4.8W copper nut long-term start relay,500A-24VV4.8W Copper Nut Long Term Start Rela

Protective features: dustproof

Coil power supply: DC

Coil power: 1.8/2.4/4.8

3C rated voltage range: below 36V

Features:

1. Adopting copper coils, with stronger conductivity and longer service life

2. Use high-quality silver contacts for more stable performance

3. The shell is made of high-quality materials and is resistant to high and low temperatures
